Automatic Evaluation Report from CSEARCH
created on 2018-02-23 at 12:57:08
based on 340,554 reference spectra




Did you know ?

Your query structure is automatically matched against the PUBCHEM-collection,
at the moment containing nearly 100 millions of chemical structures.






Request from: cpb.kiusianin@robien.org

Compound: KIUSIANIN-B_21-HYDROXY-CHOLEST-4,20-DIEN-3-ONE_COMPOUND-2

Project: CHEM.PHARM.BULL.,62,937[2014]CSEARCH-NUMBER:UWBT013935-20150627



Database Number of Entries Owner of Database


Please cite the CSEARCH-Robot-Referee as:

N. Haider, W. Robien; http://nmrpredict.orc.univie.ac.at/c13robot/robot.php


 CSEARCH
74,997 (A) CSEARCH-Data / Wolfgang Robien
 CSEARCH
56,549 (B) CSEARCH-Data / Wolfgang Robien
 CSEARCH
28,196 (C) CSEARCH-Data / Wolfgang Robien
 CSEARCH
33,587 (D) CSEARCH-Data / Wolfgang Robien
 CSEARCH
39,132 (E) CSEARCH-Data / Wolfgang Robien + NMR-Database University of Mainz
 CSEARCH
26,196 (F) CSEARCH-Data / Wolfgang Robien
 CSEARCH
50,594 (I) Upcoming CSEARCH-Data / Wolfgang Robien
 CSEARCH
31,307 (L) NMRShiftDB-Data / Version February 2012

Permanent URL



This page can be verified by a digital signature



CSEARCH-Version: 9.4.0
Robot-Referee: 2017:06:10





Request from: cpb.kiusianin@robien.org

Compound: KIUSIANIN-B_21-HYDROXY-CHOLEST-4,20-DIEN-3-ONE_COMPOUND-2

Project: CHEM.PHARM.BULL.,62,937[2014]CSEARCH-NUMBER:UWBT013935-20150627

Recommendation given here

Details of Prediction given here



Summary of Supplied Data

Understanding the Color Coding Scheme







The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened

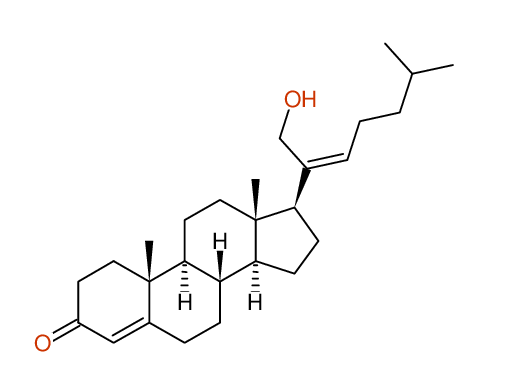

Structure Proposal

Structural diagram

Molecular formula is: C27H42O2     Molecular weight is: 398.63 amu

INCHIKEY is: NLZUWZZVWZLMOY-RSQAWRLABB

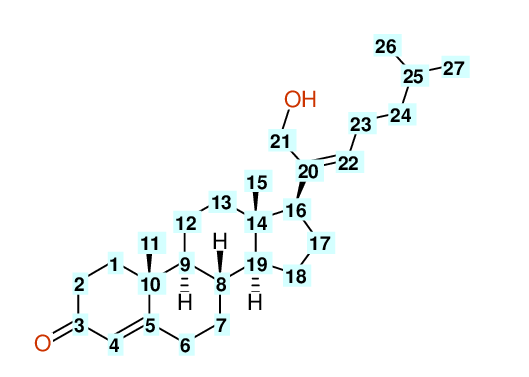

Numbering Scheme derived from the drawing sequence used during the calculation

Structural diagram

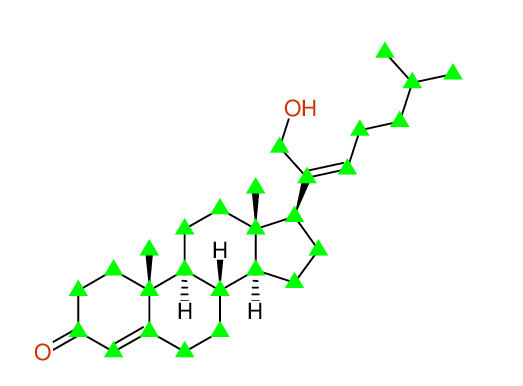

The marked carbons have been fully assigned

Structural diagram


Carbon number Chemical Shift Value Multiplicity from Structure Multiplicity from Experiment

1 35.70 T -
2 34.00 T -
3 199.50 S -
4 123.80 D -
5 171.40 S -
6 32.90 T -
7 31.90 T -
8 36.00 D -
9 53.90 D -
10 38.70 S -
11 17.40 Q -
12 20.90 T -
13 38.00 T -
14 43.40 S -
15 12.80 Q -
16 55.00 D -
17 25.50 T -
18 24.10 T -
19 55.40 D -
20 137.50 S -
21 61.20 T -
22 131.40 D -
23 25.80 T -
24 39.60 T -
25 27.70 D -
26 22.50 Q -
27 22.50 Q -




The marked carbons have been fully assigned

Structural diagram

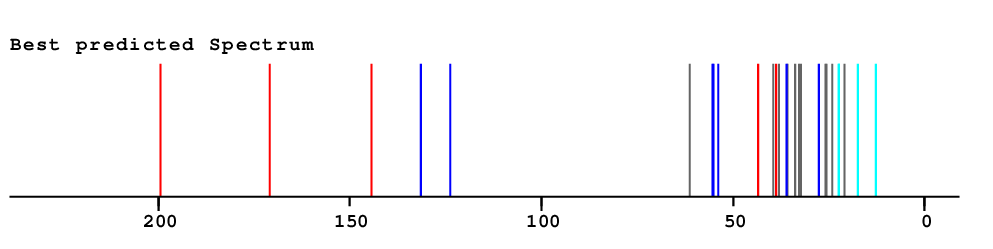

Graphical summary of the Chemical Shift Data

Spectrum






Searching external databases





The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened


Recall this Compound from PUBCHEM ( Skeleton-Match from searching 112,561,204 compounds )


4,400,967 Compounds searched in Emolecules - nothing found


Search the Internet for this compound ( Skeleton only )
Search the Internet for this compound ( Skeleton + Stereochemistry )


Search CHEMSPIDER for this compound ( Skeleton only )
Search CHEMSPIDER for this compound ( Skeleton + Stereochemistry )


Search the Internet for the molecular formula C27H42O2


Search CHEMSPIDER for the molecular formula C27H42O2



(Description)






Basic Evaluation: Checking Multiplicities




Checking lines & multiplicity Carbons/Lines Singlet Dublet Triplet Quartet Odd Even None

From structure 27 5 7 11 4 16 11 0
From spectrum 27 5 7 11 4 16 11 0


Overall impression on compatibility of multiplicity from structure and experiment

Quality bar






Evaluation based on Spectrum Prediction







Numbering Scheme

Structural diagram



Carbon Number Neural Network
Prediction
HOSE-Code
Prediction
Preferred Value
from both Predictions
Experimental
values
Difference
(Exp-Pred/ppm)
Assignment Prediction Quality
1 36.4 35.7 35.7 35.7 0.0 Assigned by author
2 34.5 33.9 33.9 34.0 0.1 Assigned by author
3 199.7 199.5 199.5 199.5 0.0 Assigned by author
4 123.7 123.9 123.9 123.8 0.1 Assigned by author
5 170.4 170.9 170.9 171.4 0.5 Assigned by author
6 32.2 32.7 32.7 32.9 0.2 Assigned by author
7 31.2 32.3 32.3 31.9 0.4 Assigned by author
8 35.8 35.9 35.9 36.0 0.1 Assigned by author
9 52.4 53.8 53.8 53.9 0.1 Assigned by author
10 38.5 38.7 38.7 38.7 0.0 Assigned by author
11 18.0 17.3 17.3 17.4 0.1 Assigned by author
12 21.5 20.9 20.9 20.9 0.0 Assigned by author
13 39.3 38.0 38.0 38.0 0.0 Assigned by author
14 45.5 43.4 43.4 43.4 0.0 Assigned by author Only very few similar structures
15 13.6 12.8 12.8 12.8 0.0 Assigned by author
16 51.0 55.0 55.0 55.0 0.0 Assigned by author Only very few similar structures
17 26.8 25.5 25.5 25.5 0.0 Assigned by author
18 24.9 24.1 24.1 24.1 0.0 Assigned by author
19 56.3 55.4 55.4 55.4 0.0 Assigned by author
20 144.3 137.5 144.3 137.5 6.8 Assigned by author Large Difference between NET & HOSE
Only very few similar structures
21 63.5 61.2 61.2 61.2 0.0 Assigned by author Only very few similar structures
22 129.5 131.4 131.4 131.4 0.0 Assigned by author
23 27.7 25.8 25.8 25.8 0.0 Assigned by author
24 39.1 39.6 39.6 39.6 0.0 Assigned by author
25 28.3 27.7 27.7 27.7 0.0 Assigned by author
26 22.7 22.4 22.4 22.5 0.1 Assigned by author
27 22.7 22.4 22.4 22.5 0.1 Assigned by author
  Absolute
Signed
   1.21ppm   (27)
   -0.41ppm   (27)
   0.07ppm   (27)
   0.03ppm   (27)
   0.32ppm   (27)
   -0.23ppm   (27)



Average deviation to experimental values
( Number of shift pairs used )

Structure representation by reference data over 5.0 shells on average



Visualization of the differences between predicted and experimental values

Spectrum


Quality of the Spectrum Prediction

Quality bar

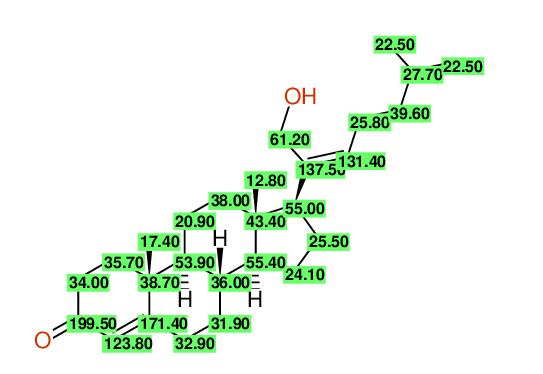

Experimental Chemical Shift Values as given

Structural diagram


Experimental Chemical Shift Values using Symmetry

Structural diagram


Preferred Chemical Shift Values from both predictions

Structural diagram

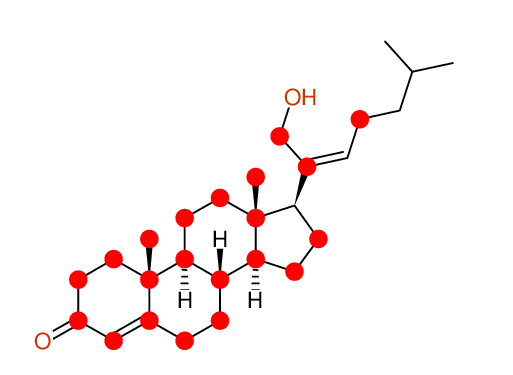

Carbons with massive contribution from stereochemistry

Structural diagram

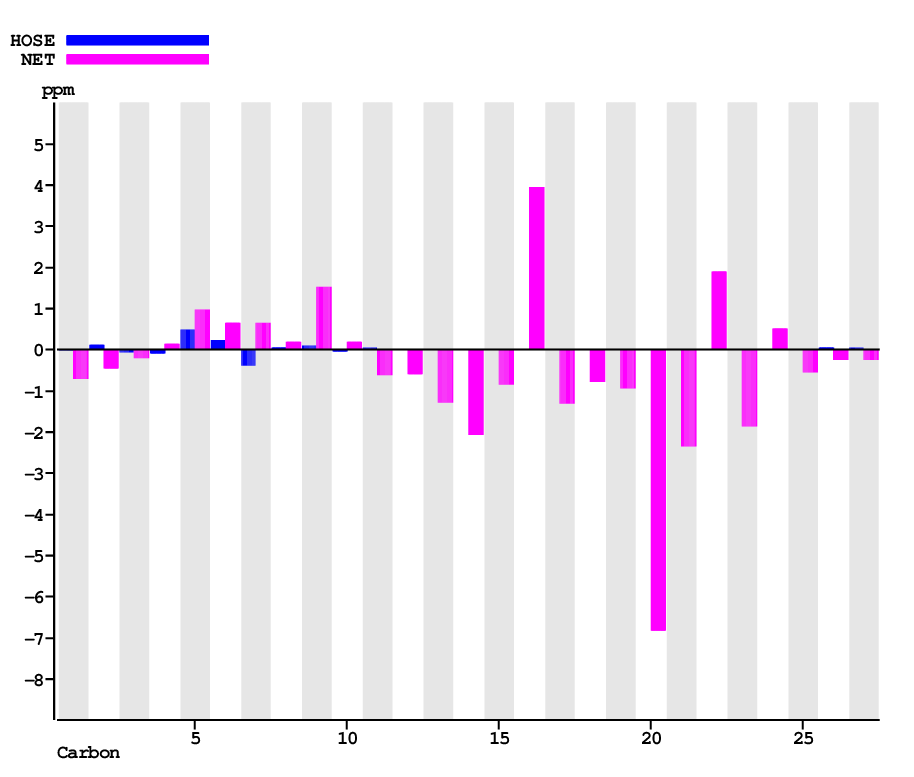

Comparison of Prediction Techniques

Spectrum


Contribution of the methods

HOSE NET NET&HOSE NONE
Structural diagram


Similarity between predicted and experimental data based on positions

Quality bar



Matching map of predicted versus experimental data

Structural diagram


Differences between predicted and experimental data in ppm

Structural diagram


Comparison of Experimental versus Predicted Chemical Shift Values

Spectrum


Overall deviation between predicted and experimental data is 0.3ppm

Quality bar



Spectrum
Spectrum
Spectrum


  Your assignment
 Difference to predicted values
Highlighting
Highlighting








1 Entry found when searching CSEARCH for identical structures

(Description)





Identical structure:
Entry # 1 of 1

CHEM.PHARM.BULL.,62,937(2014)

Solvent: CDCL3

27 carbons given
27 lines given
27 assigned lines
0 exchangeable shifts


C27H42O2
Spectrum

NLZUWZZVWZLMOY

Search Structure on WEB

Availability of spectral data



Structure








No alternative structure found when searching CSEARCH for identical spectra

(Description)












Overall Impression


Accept
Quality bar



Accept as it is




Compound: KIUSIANIN-B_21-HYDROXY-CHOLEST-4,20-DIEN-3-ONE_COMPOUND-2

Project: CHEM.PHARM.BULL.,62,937[2014]CSEARCH-NUMBER:UWBT013935-20150627


Accept


The CSEARCH Robot Referee recommends: Accept as it is

Check integrity of page via electronic fingerprint



Experimental values
Highlighting
Predicted values
Highlighting
Matching map
Highlighting
Deviation per position ( Average is 0.3ppm )
Highlighting
Carbons having strong stereochemical effects
Highlighting
Contribution of methods
HOSE NET NET&HOSE NONE
Highlighting
Overall Similarity Index is 1.1
0.0 is a "perfect match", up to approximately 3.0 it is "reasonable",
above 5.0 it is more or less "unbelievable"

  Your assignment
 Difference to predicted values
Highlighting
Highlighting


The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened


Recall this Compound from PUBCHEM ( Skeleton-Match from searching 112,561,204 compounds )


4,400,967 Compounds searched in Emolecules - nothing found


Search the Internet for this compound ( Skeleton only )
Search the Internet for this compound ( Skeleton + Stereochemistry )


Search CHEMSPIDER for this compound ( Skeleton only )
Search CHEMSPIDER for this compound ( Skeleton + Stereochemistry )


Search the Internet for the molecular formula C27H42O2


Search CHEMSPIDER for the molecular formula C27H42O2



(Description)



Your Total Usage of the CSEARCH-Robot-Referee




   2 Requests have been launched by cpb.kiusianin@robien.org


  Year


  Accept


  Minor Revision


  Major Revision


  Reject


  Only Prediction

2018 2
