Compound: 1-[2-METHYLPROPANONE]-3-PRENYL-PHLOROGLUCINOL_COMPOUND-9

Project: MOLECULES,20,17309[2015]CSEARCH-NUMBER:UWPA005186-20210309


Database Number of Entries Owner of Database


Please cite the CSEARCH-Robot-Referee as:

N. Haider, W. Robien; https://c13nmr.at/c13robot/robot.php


 CSEARCH
 74,997 (A) CSEARCH-Data / Wolfgang Robien
 CSEARCH
 56,549 (B) CSEARCH-Data / Wolfgang Robien
 CSEARCH
 28,196 (C) CSEARCH-Data / Wolfgang Robien
 CSEARCH
 33,587 (D) CSEARCH-Data / Wolfgang Robien
 CSEARCH
 39,132 (E) CSEARCH-Data / Wolfgang Robien + NMR-Database University of Mainz
 CSEARCH
 26,196 (F) CSEARCH-Data / Wolfgang Robien
 CSEARCH
 50,594 (I) Upcoming CSEARCH-Data / Wolfgang Robien
 CSEARCH
 31,307 (L) NMRShiftDB-Data / Version February 2012

CSEARCH-Version: 9.4.0
Robot-Referee: 2017:06:10



Request from: molecules.discard@robien.at

Compound: 1-[2-METHYLPROPANONE]-3-PRENYL-PHLOROGLUCINOL_COMPOUND-9

Project: MOLECULES,20,17309[2015]CSEARCH-NUMBER:UWPA005186-20210309

Recommendation given here

Details of Prediction given here

Summary of Supplied Data

Understanding the Color Coding Scheme






The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened

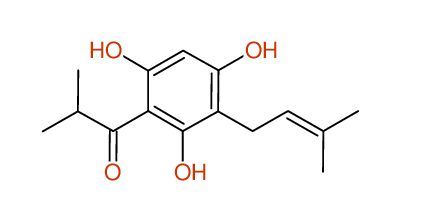

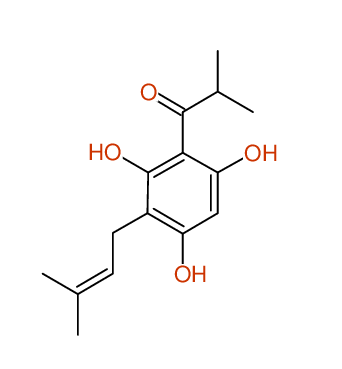

Structure Proposal

Structural diagram

Molecular formula is: C15H20O4     Molecular weight is: 264.33 amu

INCHIKEY is: IOBXAMCSYCVNET-UHFFFAOYAM

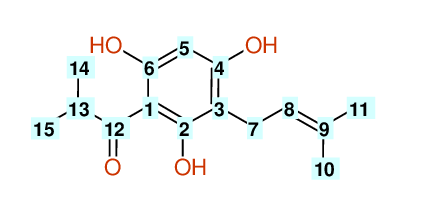

Numbering Scheme derived from the drawing sequence used during the calculation

Structural diagram

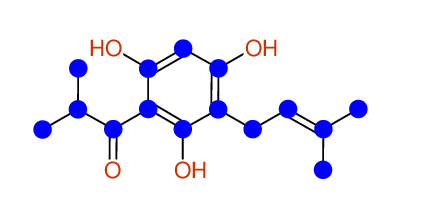

The marked carbons have been fully assigned

Structural diagram


Carbon number Chemical Shift Value Multiplicity from Structure Multiplicity from Experiment

1 104.30 S -
2 165.20 S -
3 108.00 S -
4 162.50 S -
5 95.10 D -
6 160.10 S -
7 22.10 T -
8 124.20 D -
9 130.80 S -
10 25.90 Q -
11 17.90 Q -
12 210.90 S -
13 39.70 D -
14 19.80 Q -
15 19.80 Q -




The marked carbons have been fully assigned

Structural diagram

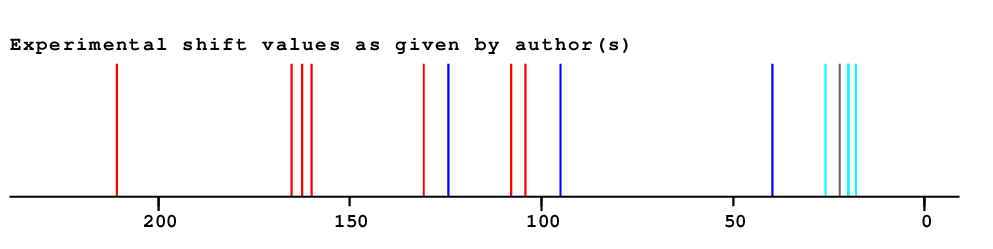

Graphical summary of the Chemical Shift Data

Spectrum





Searching external databases




The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened


Recall this Compound from PUBCHEM ( Stereo-Match from searching 138,167,628 compounds )

4,400,967 Compounds searched in Emolecules - nothing found

Search the Internet for this compound ( Skeleton only )
Search the Internet for this compound ( Skeleton + Stereochemistry )


Search CHEMSPIDER for this compound ( Skeleton only )
Search CHEMSPIDER for this compound ( Skeleton + Stereochemistry )


Search the Internet for the molecular formula C15H20O4


Search CHEMSPIDER for the molecular formula C15H20O4



(Description)

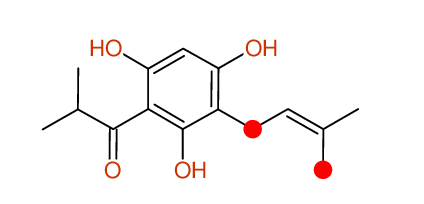

Performing Symmetry Analysis

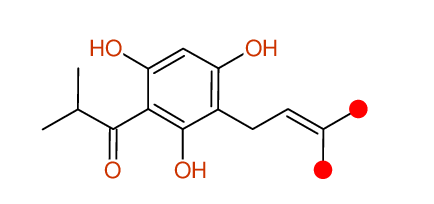

Eventually Symmetry Error: Same environment - Different shiftvalue

Structural diagram




Basic Evaluation: Checking Multiplicities



Checking lines & multiplicity Carbons/Lines Singlet Dublet Triplet Quartet Odd Even None

From structure 15 7 3 1 4 8 7 0
From spectrum 15 7 3 1 4 8 7 0


Overall impression on compatibility of multiplicity from structure and experiment

Quality bar





Evaluation based on Spectrum Prediction






Numbering Scheme

Structural diagram



Carbon Number Neural Network
Prediction		 HOSE-Code
Prediction		 Preferred Value
from both Predictions		 Experimental
values		 Difference
(Exp-Pred/ppm)		 Assignment Prediction Quality
1 103.8 104.4 104.4 104.3 0.1 Assigned by author
2 162.8 165.3 165.3 165.2 0.1 Assigned by author Only very few similar structures
3 105.5 108.1 108.1 108.0 0.1 Assigned by author Only very few similar structures
4 164.1 162.7 162.7 162.5 0.2 Assigned by author
5 96.0 95.4 95.4 95.1 0.3 Assigned by author
6 161.1 160.5 160.5 160.1 0.4 Assigned by author
7 22.8 22.0 22.0 22.1 0.1 Assigned by author
8 123.9 122.9 122.9 124.2 1.3 Assigned by author
9 131.4 132.0 132.0 130.8 1.2 Assigned by author
10 23.6 18.2 18.2 25.9 7.7 Assigned by author
Check assignment - maybe 17.90 ?		 Large Difference between NET & HOSE
Inconsistent assignments in reference material
11 24.6 25.5 25.5 17.9 7.6 Assigned by author
Check assignment - maybe 25.90 ?		 Inconsistent assignments in reference material
12 211.3 211.7 211.7 210.9 0.8 Assigned by author
13 39.2 39.2 39.2 39.7 0.5 Assigned by author
14 17.4 19.2 19.2 19.8 0.6 Assigned by author
15 17.4 19.2 19.2 19.8 0.6 Assigned by author
  Absolute
Signed
   1.69ppm   (15)
   0.09ppm   (15)
   1.44ppm   (15)
   0.01ppm   (15)
   1.44ppm   (15)
   0.01ppm   (15)

   0.47ppm   (15)
   0.01ppm   (15)
Average deviation to experimental values
( Number of shift pairs used )

Structure representation by reference data over 5.0 shells on average



Visualization of the differences between predicted and experimental values

Spectrum


Quality of the Spectrum Prediction

Quality bar

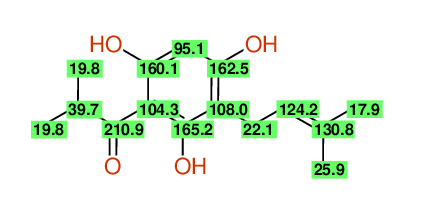

Experimental Chemical Shift Values as given

Structural diagram

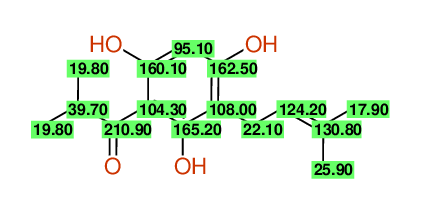

Experimental Chemical Shift Values using Symmetry

Structural diagram

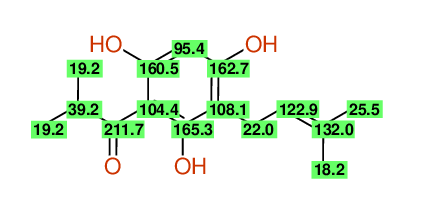

Preferred Chemical Shift Values from both predictions

Structural diagram


Carbons with massive contribution from stereochemistry

Structural diagram

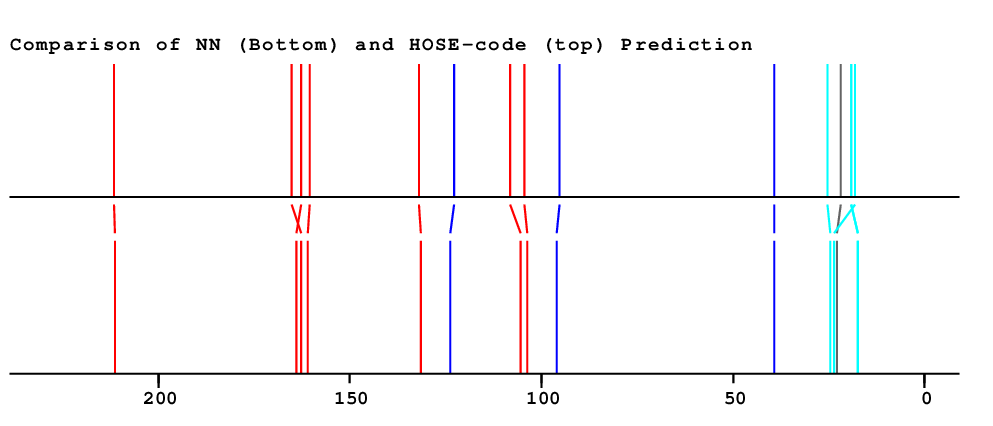

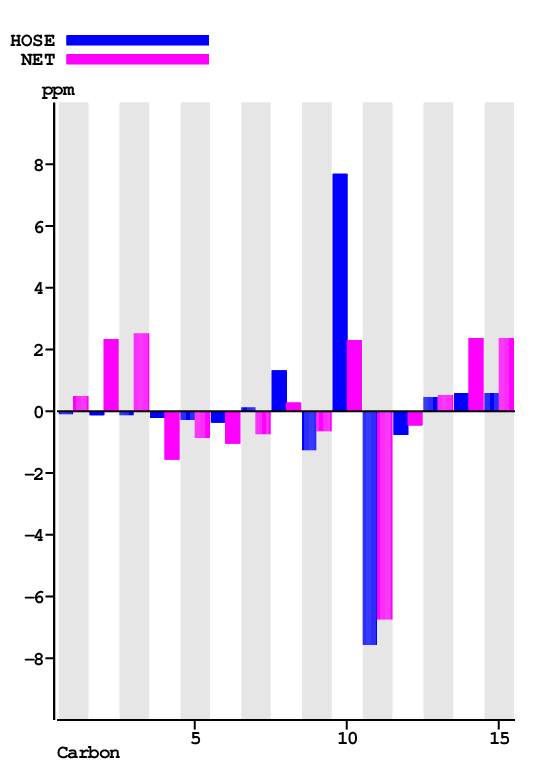

Comparison of Prediction Techniques

Spectrum

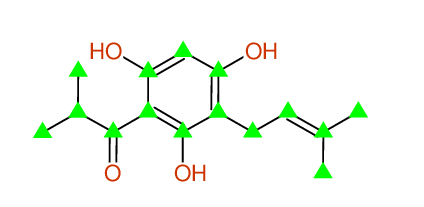

Contribution of the methods

HOSE NET NET&HOSE NONE
Structural diagram


Similarity between predicted and experimental data based on positions

Quality bar

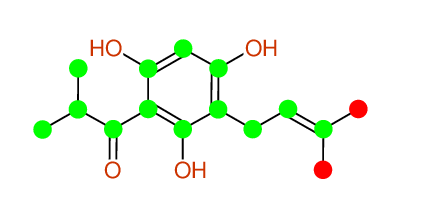

Matching map of predicted versus experimental data

Structural diagram


Differences between predicted and experimental data in ppm

Structural diagram

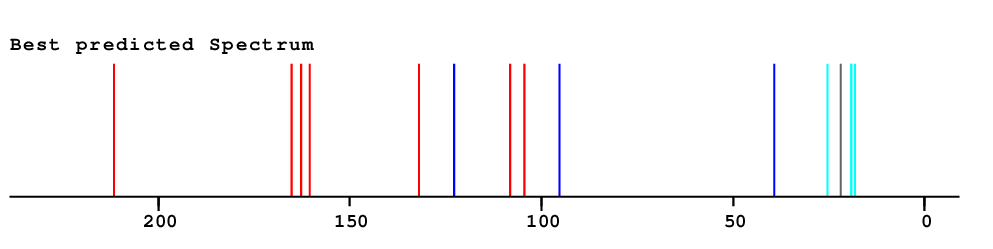

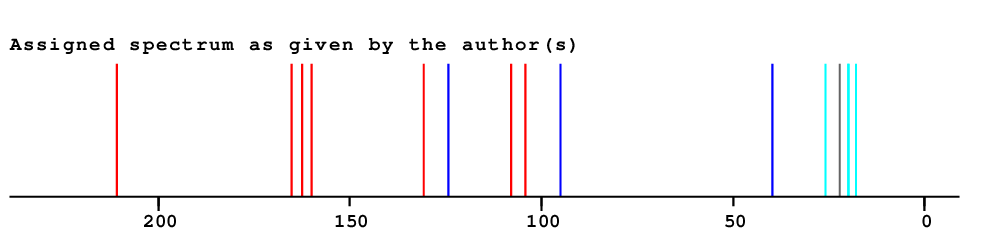

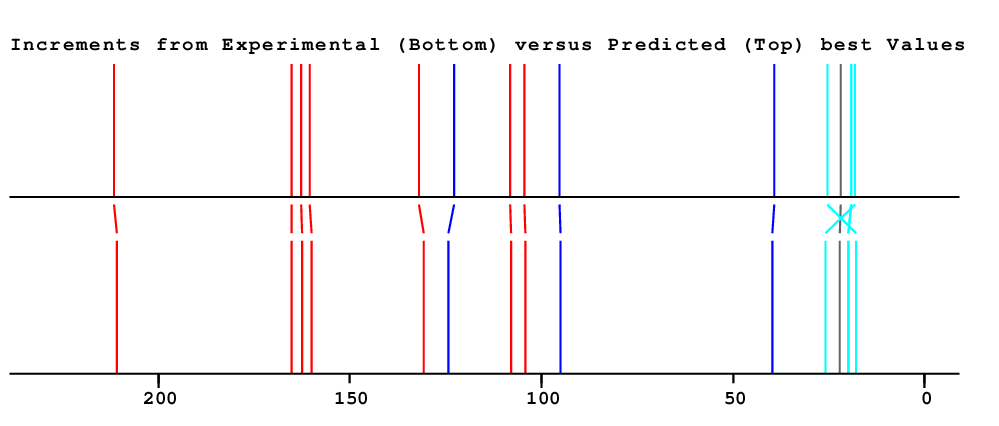

Comparison of Experimental versus Predicted Chemical Shift Values

Spectrum


Overall deviation between predicted and experimental data is 1.4ppm

Quality bar



Spectrum
Spectrum
Spectrum


  Your assignment
 Difference to predicted values
Highlighting
Highlighting

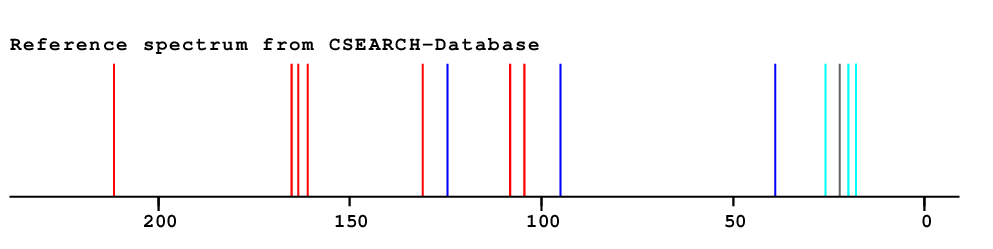

1 Entry found when searching CSEARCH for identical structures

(Description)




Identical structure:
Entry # 1 of 1

PHYTOCHEM.,69,1745(2008)

Solvent: CD3OD

15 carbons given
15 lines given
13 assigned lines
2 exchangeable shifts

C15H20O4
Spectrum

IOBXAMCSYCVNET

Search Structure on WEB

Availability of spectral data
Structure







No alternative structure found when searching CSEARCH for identical spectra

(Description)










Overall Impression


Minor revision
Quality bar



Minor revision might be necessary - please check




Compound: 1-[2-METHYLPROPANONE]-3-PRENYL-PHLOROGLUCINOL_COMPOUND-9

Project: MOLECULES,20,17309[2015]CSEARCH-NUMBER:UWPA005186-20210309


Minor revision


The CSEARCH Robot Referee recommends: Minor revision might be necessary - please check

  • NN-Prediction and HOSE-Code prediction differs significantly at 1 carbon position
  • Assignment can be probably improved at 2 positions
  • 2 Carbon positions ( out of 15 ) have a severe assignment problem
  • Spectrum prediction - minor inconsistencies found
  • 1 Identical structure can be found in the CSEARCH-database
  • 2 Carbon(s) might have a symmetry-problem


Experimental values
Highlighting
Predicted values
Highlighting
Matching map
Highlighting
Deviation per position ( Average is 1.4ppm )
Highlighting
Carbons having strong stereochemical effects
Highlighting
Contribution of methods
HOSE NET NET&HOSE NONE
Highlighting
Overall Similarity Index is 1.4
0.0 is a "perfect match", up to approximately 3.0 it is "reasonable",
above 5.0 it is more or less "unbelievable"

  Your assignment
 Difference to predicted values
Highlighting
Highlighting


The NMR-Spectrum for this compound is available in commercial & non-commercial databases
All Spectra from NMRPREDICT, SPECINFO, NMRShiftDB, MESTRENOVA and
CSEARCH (including spectra not yet released) were screened


Recall this Compound from PUBCHEM ( Stereo-Match from searching 138,167,628 compounds )

4,400,967 Compounds searched in Emolecules - nothing found

Search the Internet for this compound ( Skeleton only )
Search the Internet for this compound ( Skeleton + Stereochemistry )


Search CHEMSPIDER for this compound ( Skeleton only )
Search CHEMSPIDER for this compound ( Skeleton + Stereochemistry )


Search the Internet for the molecular formula C15H20O4


Search CHEMSPIDER for the molecular formula C15H20O4



(Description)


Your Total Usage of the CSEARCH-Robot-Referee




   5 Requests have been launched by molecules.discard@robien.at


  Year
  Accept
  Minor Revision
  Major Revision
  Reject


  Only Prediction

2021 5
